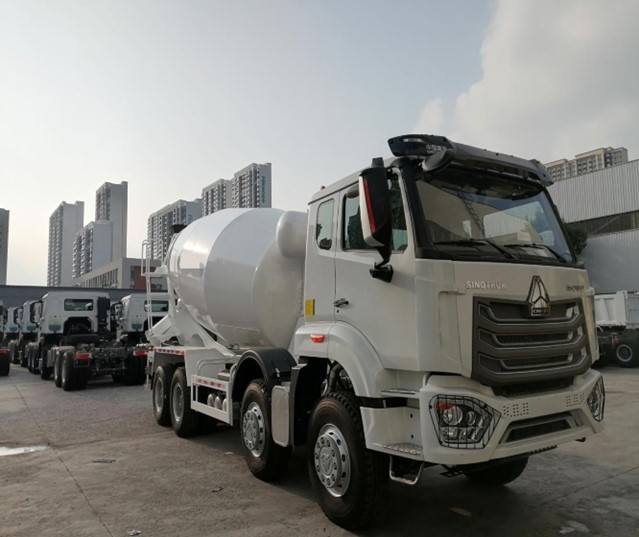

Sinotruk 8√ó4 12m3 Concrete Mixer Truck
19.06.2025
Type: CONCRETET MIXER TRUCK 12 m3
Traction type:8X4 Mixer capacity:12cbm Brand: SINOTRUK
Price: USD $57,600.00/ 1 UNIT FOB PORT QINGDAO CHINA
Please kindly noted that this quote is based on 1 US dollar against 7.17 RMB rate. Overall dimension:120cbm

Production time: 45 days after receiving 30% deposit by T/T
Payment: 30% deposit by T/T pre production and 70% balance by T/T pre shipment
Shipment: by vessel
Validity of the pricelist: 30 days Pictures are for reference only.

Specifications:
| Sinotruk 8X4 Concrete Mixer Truck 380hp | |
| Traction type | 8X4 |
| Driving type | Right Hand Drive |
| Cabin | HOWO H77L-R cabin, flat roof with air-conditioner |
| Engine brand | Weichai Engine |
| Engine model | WP10.380E22 |
| Engine type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter-cooling |
| Rated power(kw) | 278 |
| Horse power | 380 |
| Displacement | 9.726liters |
| Emission standard | Euro II |
| Max. output | 380HP@2200rpm |
| Max torque | 1500NM@1100~1600rpm |
| Bore/Stroke(mm) | 126/130 |
| Specific fuel consumption | ≦190g/Kwh |
|
    Gear box |
Sinotruk HW19710
Manual type (10 forward speeds + 2 reverse speeds) |
| Clutch | 430 Diaphragm type |
| Steering | Bosch (RHD) |
| Front axle | VGD95 front axle series with drum brake |

| Rear axle | MCP16ZG rear axles 2X16 ton permissible load |
|
Tyre |
12.00R20 Radial Tires Number of tires:12+1 spare |
|   |   |
| Suspension | Leaf spring |
| Parameter | |
| Max. speed (km/h) | 78 |
| Curb weight (kg) | 12,580 |
| Wheel base (mm) | 1950+3800+1400 |
| Fuel tank capacity | 300L |
| Overall dimension (mm) | 12560x2500x3980 |
| Mixer drum | |
| Reducer | Italian PMP |
| Pump | American Eaton |
| Motor | American Eaton |
| Drum Capacity (m3) | 12 |
| Drum rotating speed (r/min) | 0~18 |
| Drum slope (degree) | 15 |
| Water tank volume (L) | 400 |
| Discharged remain ratio (%) | 0.2 |
