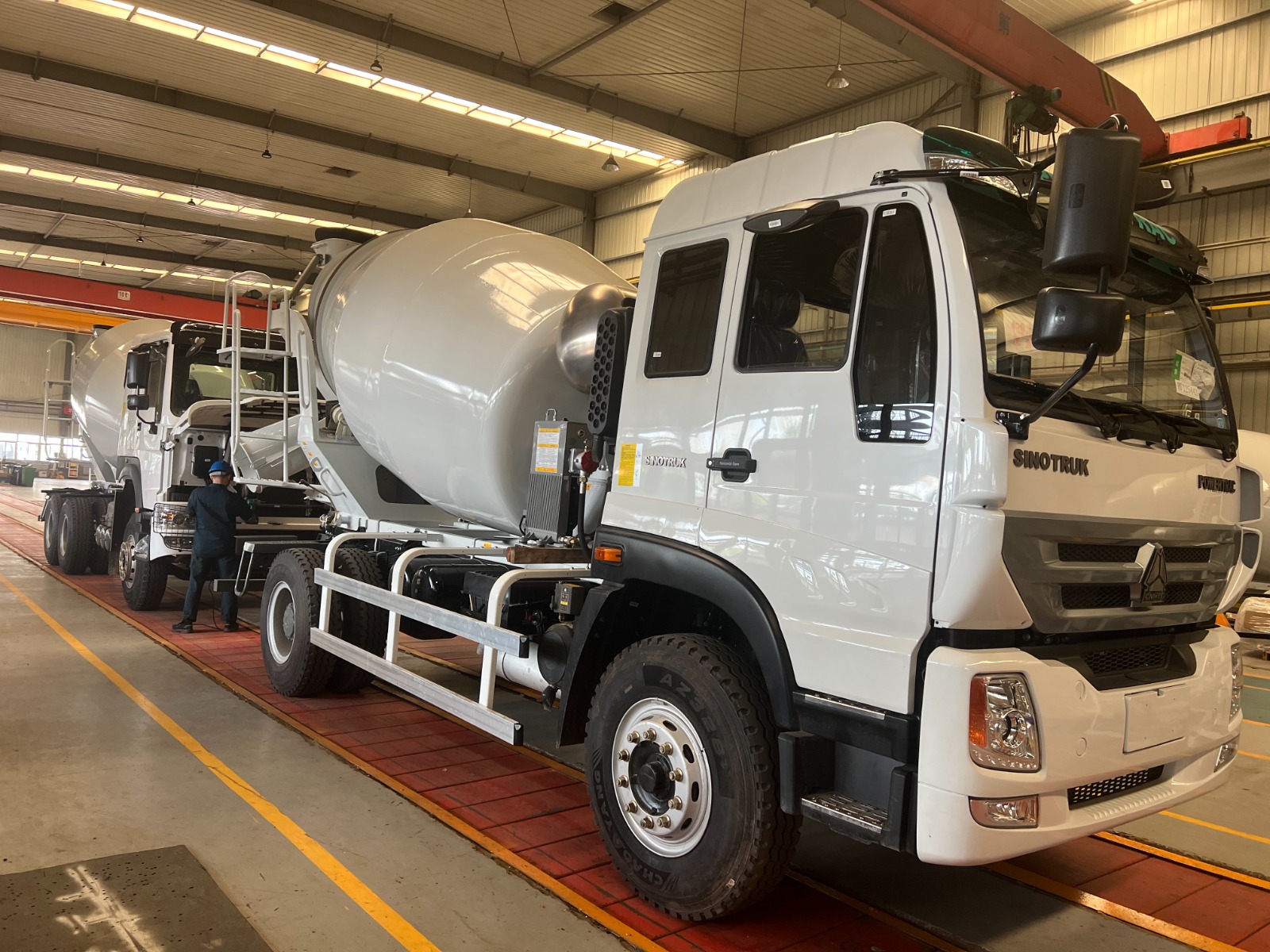

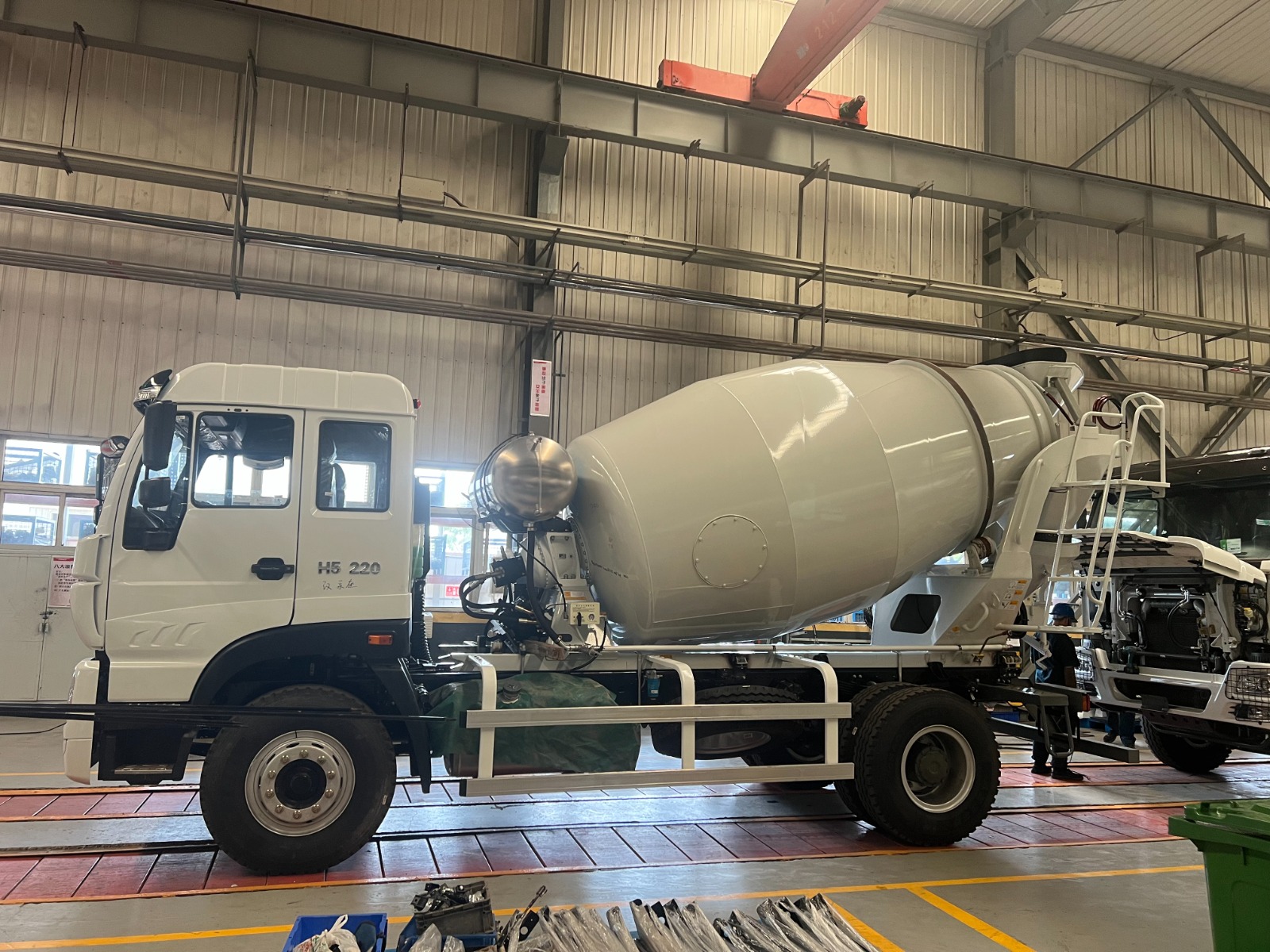

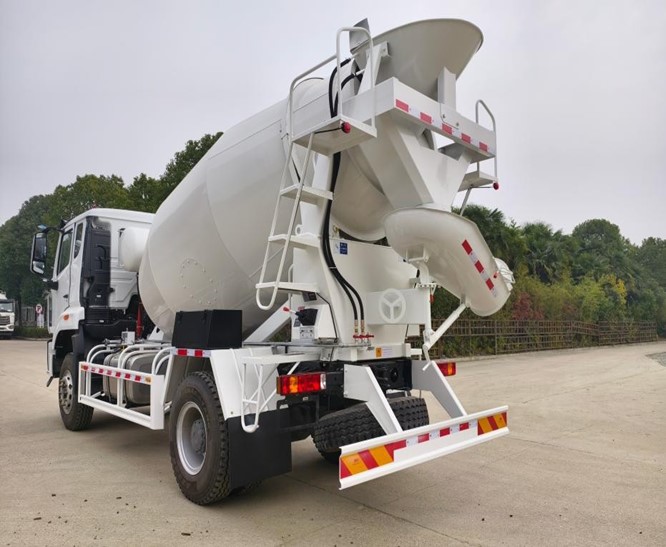

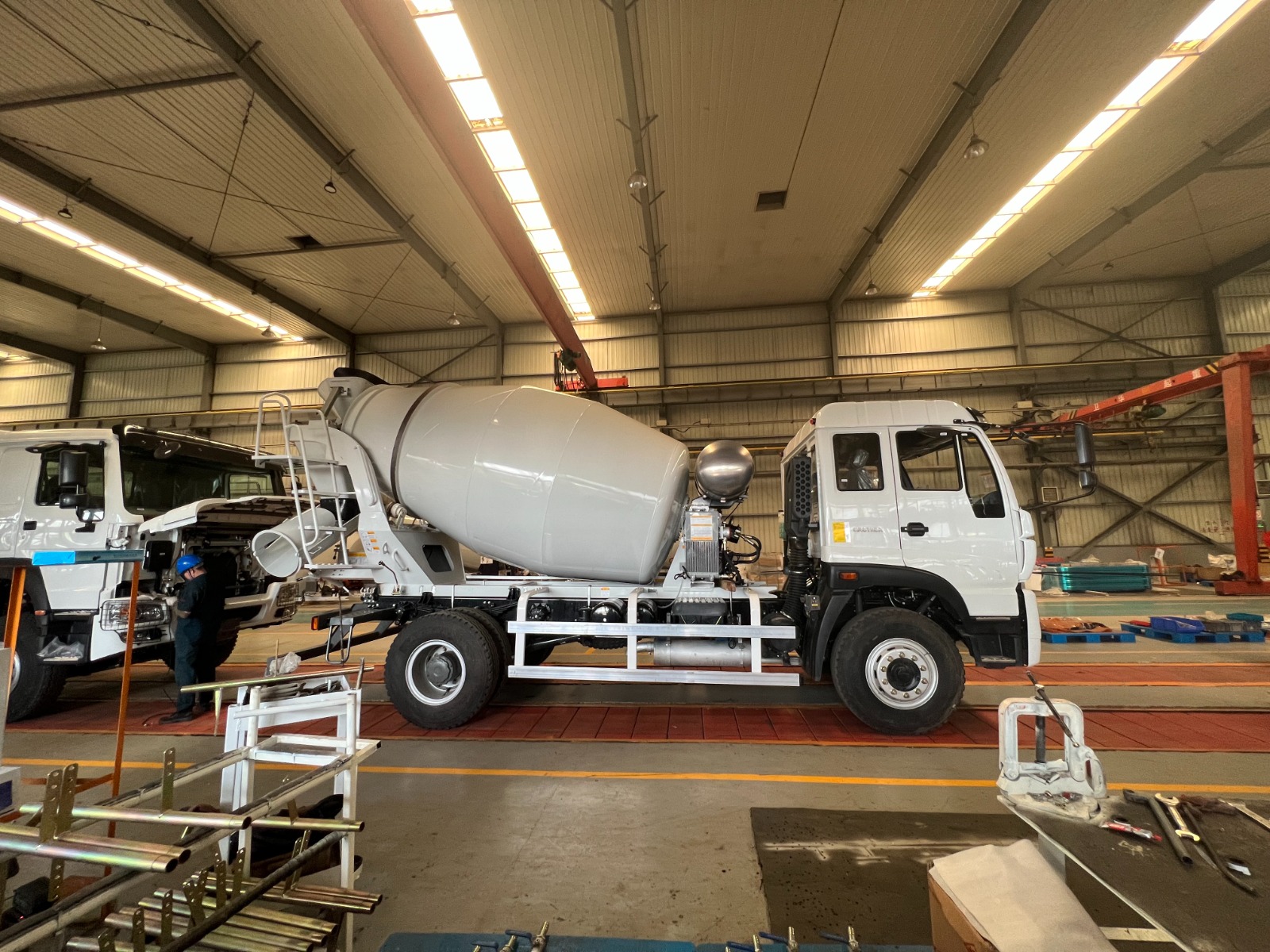

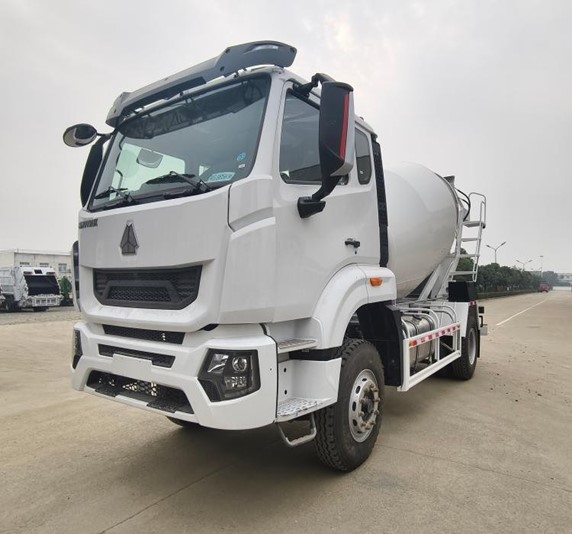

 Sinotruk 4×2 5m3 Concrete Mixer Truck
19.06.2025
Type:CONCRETE MIXER TRUCK 5m3
Traction Type:4X2
Mixer capacity:5cbm
Brand: SINOTRUK
Price: USD $41,400.00/ 1 UNIT FOB PORT QINGDAO CHINA
Please kindly noted that this quote is based on 1 US dollar against 7.17 RMB rate. Overall dimension:63cbm

Production time: 45 days after receiving 30% deposit by T/T Payment: 30% deposit by T/T pre production and 70% balance by T/T
pre shipment or L/C at sight Shipment: by vessel
Validity of the pricelist: 30 days Pictures are for reference only.

Specifications:
| Sinotruk 4√ó2 Concrete Mixer Truck 220hp | |
| Traction type | 4√ó2 |
| Driving type | Right Hand Drive |
| Cabin | Homan M7 flat roof cabin |
| Engine brand | Weichai Engine |
| Engine model | YC6J220-33 |
| Engine type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter-cooling |
| Rated power(kw) | 162 |
| Horse power | 220 |
| Displacement | 6.494liters |
| Emission standard | Euro II |
| Max. output | 220HP@2200rpm |
| Max torque | 800NM@1200~1700rpm |
|
  Gear box |
Sinotruk HW95510C
Manual type (10 forward speeds + 2 reverse speeds) |
| Front axle | 153 5.5T front steering axle |
| Rear axle | 457 rear driving axle
13 ton permissible load |
| Tyre | 10.00R20 Radial Tires
Number of tires:6+1 spare |
| Suspension | Leaf spring |
| Parameter | |
| Max. speed (km/h) | 78 |

| Curb weight (kg) | 10,589 |
| Fuel tank capacity | 300L |
| Overall dimension (mm) | 8560x2600x2800 |
| Mixer drum | |
| Reducer | PMP |
| Pump | American Eaton |
| Motor | American Eaton |
| Drum Capacity (m3) | 5 |
| Water tank volume (L) | 400 |
